WHIRL PLUS Pipe Laser Cutting Machine

WHIRL TUBE cutting 4 Axis and 5 Axis
Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1004
Product serial number
WHIRL PLUS 8518
Table Travel:
8500mm*700mm*265mm
(VDI3441):(Accuracy):
(Mechanical Repeatabileity):
Rapid Speed:
120m/min
Maximum Acceleration:
1G
Laser Power Option:
1000W-3000W
Laser Source Option:
Quantity
-
+
Stock:
0
1
Description
Parameters
Technical Data
VIDEO

Overview

Whirl Series is a model of fiber laser cutting machine designed for cutting pipe/tube.

Technology Innovations

Automatic clamping and centering, ensure long pipe feeding accuracy, high cutting precision and excellent efficiency
Automatic Loading system available, for decreasing labor cost,increasing cutting efficiency
The Nesting Software has multi-layer function, enable processing any complex curve drawings
Available to process square Tube,round Tube,rectangular Tube, Irregular Tube etc.

Operating System

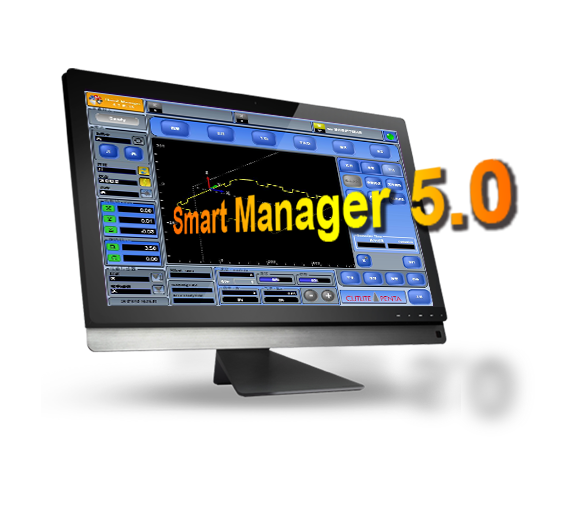

The newly updated Smart Manager 5.0 is an imported CNC software which  originated in European and based on the Windows platform. That software can realize comprehensive interface with Italy imported CNC system. Thus, it’s more convenient and faster for machine and laser source’s real-time control and CNC software’s upgrading.  Friendly interface, easy to lean and quick operation. The NC program can be edit and read easily. Provide cutting database and adjust the parameters during cutting process, aims at reaching best cutting quality. Optimize various of piercing mode, such as continuous piercing, pulse piercing, blasting piercing and so on. Adopt new generation of grog jump management, which enable the fluent movement without any pauses. Thin materials’ productivity promoted more than 25%. Acquire gas auto shut-off function during fast moving. Even faster with the function of automatic edge detection. Embedded with intelligent Smart Connection. Anti-collision function ensures smooth operation. Intelligent detection of cutting head temperature; connection to cloud server for easier remote equipment.

Cost Effective

The cutting head is embedded in the installation, closer to the chuck part, reducing the cutting tail material
The Nesting Software has multi-layer function, enable processing any complex curve drawings. Available to process square Tube,round Tube,rectangular Tube, Irregular Tube etc.



Stable Performance

Grantry structural beam, better rigidity, preventing the cutting head from shaking, affecting cutting accuracy.

High Precision

The laser sensor monitors the radial dimension of the cutting pipe in real time to compensate and ensure accuracy.

SAMPLES

Scan the QR code to read on your phone



Item Model
WHIRL PLUS 7510 WHIRL PLUS 8518 WHIRL PLUS 10018 WHIRL PLUS BV8518
X Travel 7500mm 8500 10000mm 8500mm
Y Travel 7000mm 560mm
Z Travel 265mm 300mm
Rotation axis A\C\P travel N*360°
Straight axis re-positioning accuracy ±0.03mm
Linear acceleration 1G
Straight axis maximum speed 120m/min
Rotation axis re-positioning accuracy ±8
Rotation axis maximum speed 120rpm
Control type of chuck Automatic clamping, automatic centering and
full travel without changing clamping claws
Clamping tube’s diameter range 20mm-180mm/60mm-220mm
Laser Power Option 1000W-3000W
